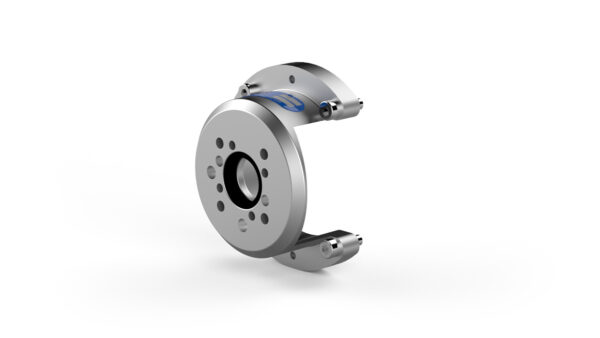

Tool adapter plate CiRo Small
For CiRo S1, S2, S3 and S4
NOTE! See Technical description for maximum tool load on each model.
The tool adapter kit P5305 shall be mounted on on CiRo S1, S2, S3 or S4 and used for mounting of tool or tool changer with bolt pattern ISO 9409-1 40-4-M6 or ISO 9409-1 31,5-4-M5.
| Mechanical interface (tool) | ISO 9409-1-31,5-4-M5, ISO 9409-1-40-4-M6 |
|---|---|
| Fz | ± 100 N | ± 22 lb, ± 50 N | ± 11 lb |
| Mz | ± 80 Nm | ± 708 lbf·in, ± 40 Nm | ± 354 lbf·in |
| Mx/My | ± 40 Nm | ± 354 lbf·in, ± 80 Nm | ± 708 lbf·in |
| Weight | 0.2 kg | 0.44 lb |
| Height | 40 mm |
| Centre of gravity (Z) | + 36 mm |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
