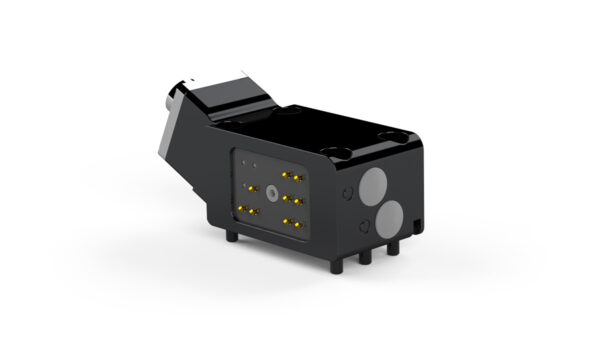

TC60/TC120/TC180 Bus module Ethernet IP

Module for Bus, Ethernet IP. To be used with Modular tool changers TC60/TC120/TC180.

Easy to customize

Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.

Signal type


Bus available to tool

8 (4 pair), 1 Gbit/s

Connector 1

M12-A coded, 8 pin


0.2 kg | 0.44 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

IP Class

IP 54 (in docked condition)

Rated current

1 A

Rated voltage

60 V

Corresponding TA module

For Tool changer
