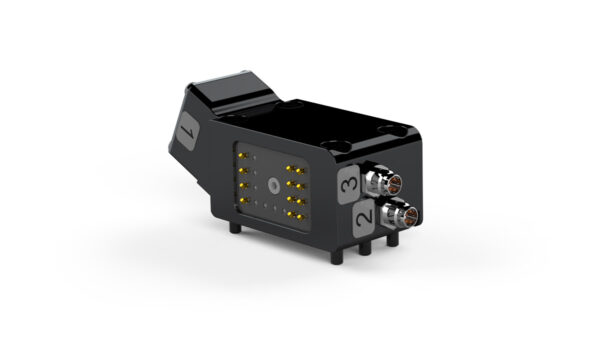

TC60/TC120/TC180 Signal module 12 x signals (3xM8)
Module for 12 x aditional signals. To be used with Modular tool changers TC60/TC120/TC180.
Easy to customize
Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.
Signal type | Signal |
---|---|
Signals total | 12 |
Signals available to tool | 12 |
Connector 1 | M8, 4 pin |
Connector 2 | M8, 4 pin |
Connector 3 | M8, 4 pin |
Weight | 0.2 kg | 0.44 lb |
Working temperature | +10°C – +50°C | 50 °F – 120 °F |
IP Class | IP 54 (in docked condition) |
Rated current | 1 A |
Rated voltage | 60 V |
