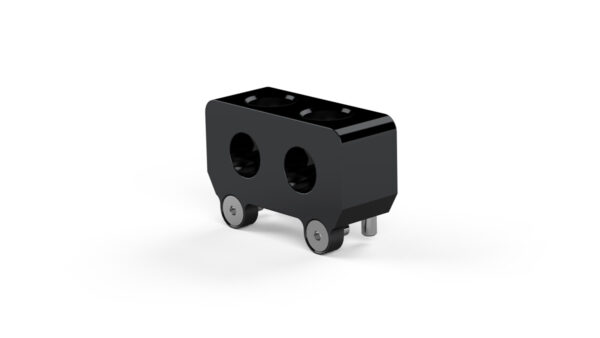

TA60-180 Air module 2 x 3/8″

Module for 2 x aditional air channels. To be used with TA60-180 tool attachments.

Easy to customize

Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.

Air channels total

2

Air connection, outlet

G 3/8" (2x)

Max air pressure

10 bar | 145 psi

Valve (robot side)

Free passage

Valve (tool side)

Free passage

Weight

0.1 kg | 0.22 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Corresponding TC module

For Tool attachment

Downloads
