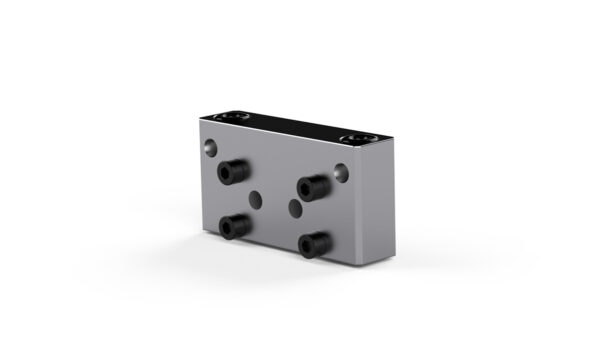

TC5 Air module 2 x M5 air

Module for 2 x aditional air channels. To be used with TC5 tool changer.

Easy to customize

Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.

Air channels total

2

Air channels available to tool

2

Air connection, inlet

M5 (2x)

Max air pressure

10 bar | 145 psi

Valve (robot side)

Free passage

Valve (tool side)

Free passage

Weight

0.04 kg | 0.09 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Corresponding TA module

For Tool changer
