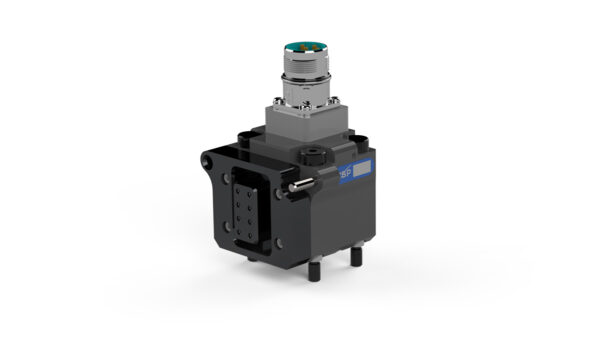

TC240-960 Servo module (M23 8 pin)

Module with servo interface. To be used with Moduflex tool changers TC240 – TC960.

Easy to customize

Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.

Signal type

Servo

Signals total

8 (4 + 3, PE)

Signals available to tool

8 (4 + 3, PE)

Connector 1

M23 Power, male thread, 8 pin

Rated current

15A (3x), 5A (4x)

Rated voltage

300V (4x), 600V (3x)

IP Class

IP 54 (in docked condition)

Weight

0.2 kg | 0.44 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Corresponding TA module

For Tool changer
