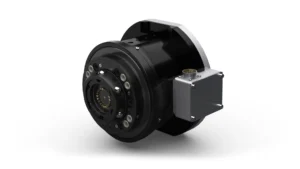

Swivel Tool Changer STC20-4E

  • For robot payload 20 kg
  • Allows continuous rotation of axis 6
  • Increased mobility
  • Reduces hose package interference
  • Maximizes hose package lifetime
Art.no: P0108A Categories: ,

The RSP Swivel tool changer is a unique combination of a swivel and a tool changer. As the sole supplier, we offer integrated swivel- and tool changing functions, which combine the free rotation of axis 6 with compactness and minimal extension from the robot’s tool plate. RSP‘s swivel tool changers unite the best of two technologies and together with our own developed and patented slip ring solution it provides maximized reliability.

All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools. Find out more about the TrueConnect™ technology.

Mechanical interface

ISO 9409-1-40-4-M6

Robot payload

20 kg | 45 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Fz

± 200 N | ± 45 lb

Mz

± 100 Nm | ± 900 lbf·in

Mx/My

± 100 Nm | ± 900 lbf·in

Weight

1.1 kg | 2.43 lb

Height

77.5 mm | 3.05 in

Air channels total

6

Air channels dedicated

2 (TC open and TC close)

Air channels available to tool

4

Air connection, inlet

M5 (6x)

Max air pressure

10 bar | 145 psi

Air flow per channel

150 l/min | 5.30 CFM

Air quality

Oil-clean and waterless filtered air, with max 25µm particle content

Signals total

8

Signals dedicated robot side

3 (0 V, 24 V and TC coupled)

Signals available to tool

5

Rated current

0.5 A

Connection robot side

M12-A coded, 8 pin

Tool attachment

Adaptation kits


Adaptation kits for ABB

Adaptation kits for Fanuc

Adaptation kits for Kuka

Adaptation kits for Yaskawa/Motoman
