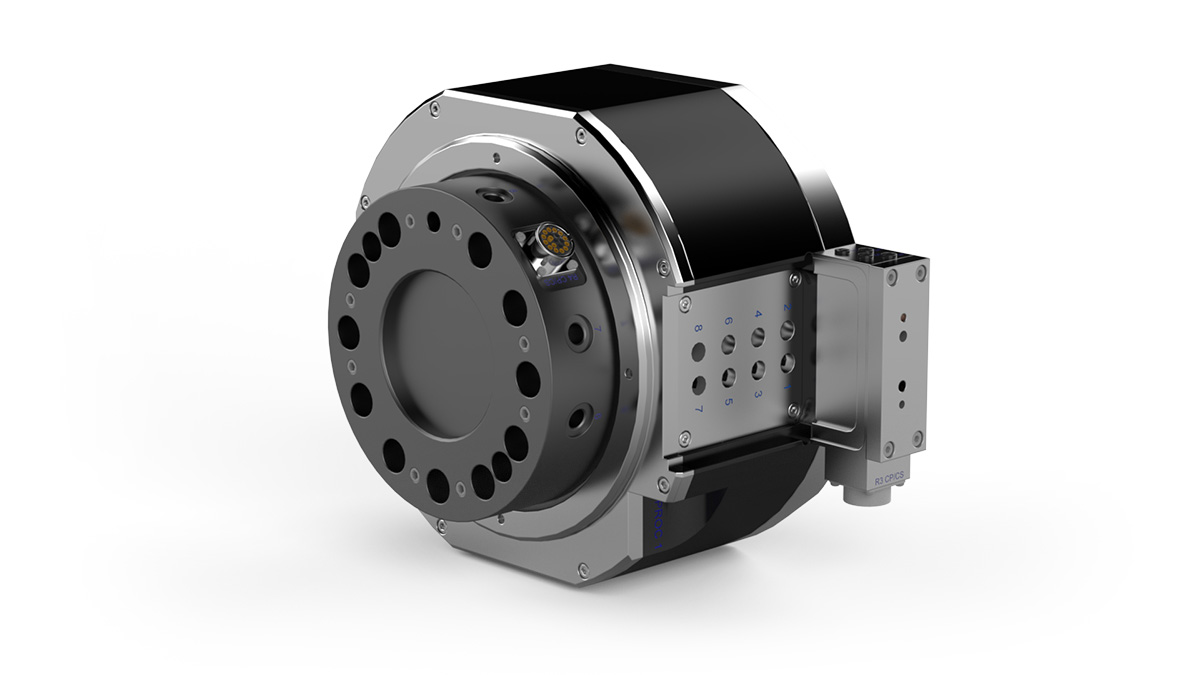

Swivel S350-8ES (sealed)

  • For robot payload 350 kg
  • Allows continuous rotation of axis 6
  • Increased mobility
  • Reduces hose package interference
  • Maximizes hose package lifetime
Art.No: P1613A Categories: ,

With RSP swivel S350, the axis 6 can rotate freely. Wear on the hose package decreases, while uptime and productivity is increased. If the swivels are used with our hose packages, axis 4 and 5 are also able to rotate unimpeded. The full working range of the robot can be utilized. RSP has developed our own patented slip ring solution for maximized reliability.

Mechanical interface

ISO 9409-1-160-11-M12

Robot payload

350 kg | 800 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Fz

± 3500 N | ± 800 lb

Mz

± 3500 Nm | ± 31000 lbf·in

Mx/My

± 3500 Nm | ± 31000 lbf·in

Weight

22.4 kg | 79.38 lb

Height

230 mm | 9.06 in

Air channels total

8

Air channels available to tool

8

Air connection, inlet

G 1/4" (8x)

Air connection, outlet

G 1/4" (8x)

Max air pressure

10 bar | 145 psi

Air flow per channel

1600 l/min | 56.5 CFM

Air quality

Oil-clean and waterless filtered air, with max 25µm particle content

IP Class

IP 65

Signals total

14

Signals dedicated robot side

3 (GND, 0 V and 24 V)

Signals dedicated tool side

3 (GND, 0 V and 24 V)

Signals available to tool

11

Rated current

2 A

Connection robot side

Souriau 23p Male

Connection tool side

Souriau compact 19p Female

Adaptation kits


Adaptation kit for ABB
