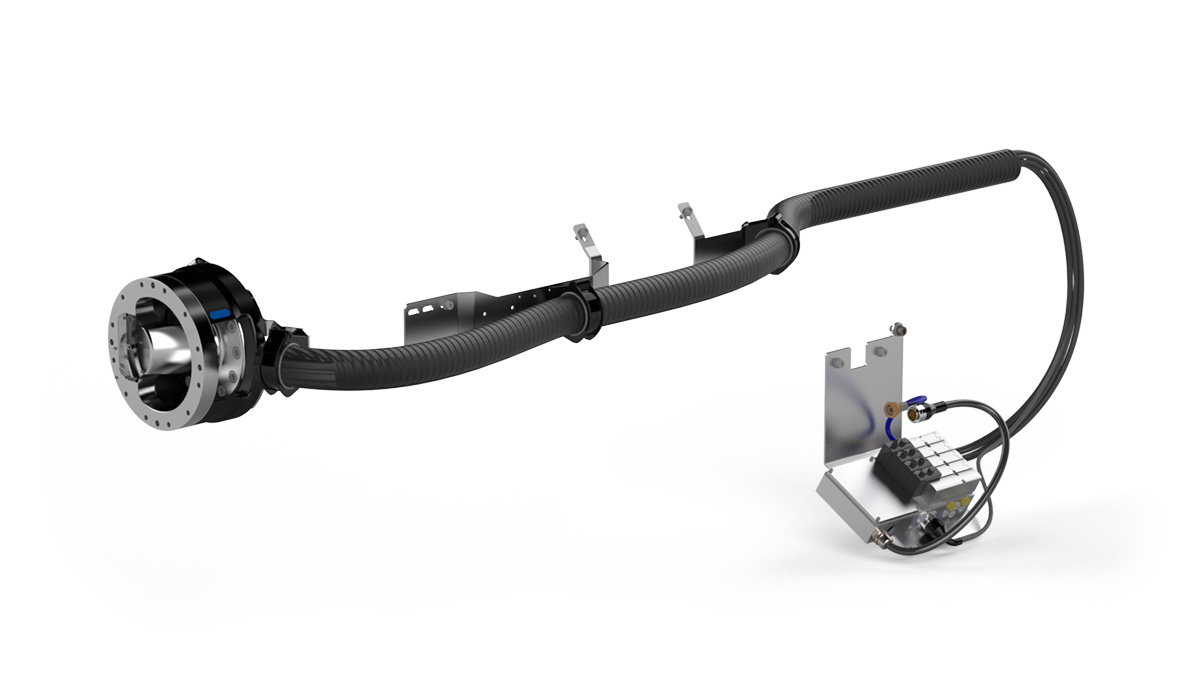

Tool system CiRo XL for ABB IRB6700-155/2,85

This tool system is used when eight pneumatic channels and twelve electric signals are required. It consists of a CiRo, adaptation kit, hose package, valve units, connectors, cabling and hoses. The valve unit contains four bistable 5/2 valves.

The complete package

With our tool systems you get it all: a complete combination of our products, adapted to your robot and your needs. An effective, flexible solution made to fit perfectly. The tool system is made easy to install, requires low maintenance and simplifies offline programming. Spend time on the application, and not on dressing the robot.

Robot brand

ABB

Mechanical interface

ISO 9409-1-100-6-M10

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Fz

± 2000 N | ± 450 lb

Mz

± 2000 Nm | ± 17700 lbf·in

Mx/My

± 2200 Nm | ± 19500 lbf·in

Max rotation

± 250°

Air channels available to tool

8

Max air pressure

10 bar | 145 psi

Air quality

Oil-clean and waterless filtered air, with max 25µm particle content

Valve size

ISO15407-2 26 mm

Valve type

4 x Directional valves 5/2 Bistable

Signals available to tool

12
