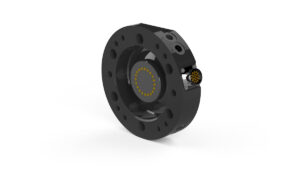

Tool changer TC250-8E (for air and electric signals)

  • For robot payload 250 kg
  • Compact design
  • Internal signal transmission
  • Minimum of wear of the contact surfaces
  • Optimized for material handling and tough environments

Art.No: P6412 Categories: , ,
Tool changing ability of Tool changer TC250-8E

The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool.

All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools. Find out more about the TrueConnect™ technology.

Mechanical interface

ISO 9409-1-125-6-M10

Robot payload

250 kg | 550 lb

Fz

± 2000 N | ± 450 lb

Mz

± 1250 Nm | ± 11000 lbf·in

Mx/My

± 2000 Nm | ± 17600 lbf·in

Weight

6.1 kg | 13.45 lb

Height

75 mm | 2.95 in

Air channels total

10

Air channels dedicated

2 (TC open and TC close)

Air channels available to tool

8

Max air pressure

10 bar | 145 psi

Air flow per channel

1600 l/min | 56.5 CFM

Air connection, inlet

G 1/4" (8x), G 1/8" (2x)

Air quality

Oil-clean and waterless filtered air, with max 25µm particle content

IP Class

IP 54

Signals total

21

Signals dedicated robot side

5 (GND, 0 V, 24 V, TC coupled and TC uncoupled)

Signals available to tool

16

Connection robot side

Souriau UT001823PH

Rated current

2 A

Rated voltage

60 V

Working temperature

+10°C – +50°C | 50 °F – 120 °F

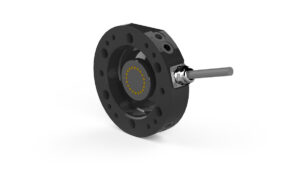

Tool attachment

Options

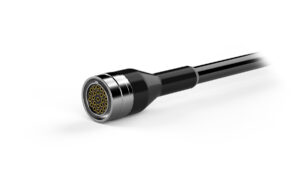

Cables and connectors – Robot side
