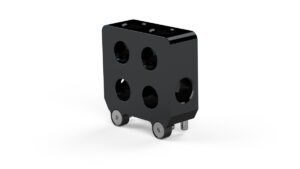

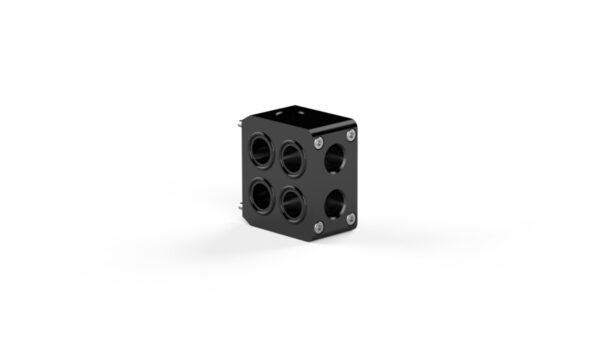

TC60/TC120/TC180 Air module 4 x 3/8″
Module for 4 x aditional air channels. To be used with Modular tool changers TC60/TC120/TC180.
Easy to customize
Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.
| Air channels total | 4 |
|---|---|
| Air channels available to tool | 4 |
| Air connection, inlet | G 3/8" (4x) |
| Max air pressure | 10 bar | 145 psi |
| Valve (robot side) | Free passage |
| Valve (tool side) | Free passage |
| Weight | 0.2 kg | 0.44 lb |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
