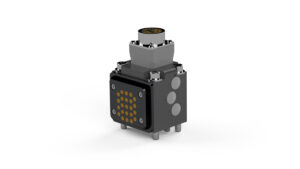

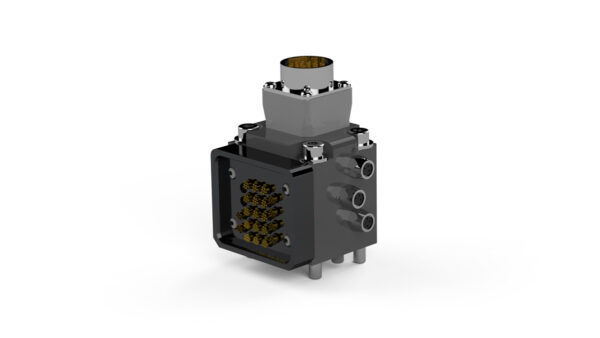

TC240-960 Signal module 19 x signals (Souriau 26P + 3 x M8)
Module for 19 x aditional signals. To be used with Moduflex tool changers TC240 – TC960.
Easy to customize
Tool changers and tool attachments in the Moduflex series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.
| Signal type | Power, Signal |
|---|---|
| Signals total | 25 + PE |
| Signals dedicated tool side | 6 (TC closed, TC opened, doOpen TC1, doOpen TC2, 24V, 0V) |
| Signals available to tool | 19 + PE |
| Connector 1 | Souriau UT0W01626PH, 26 pin |
| Rated current | 2 A |
| Rated voltage | 30 V |
| IP Class | IP 54 (in docked condition) |
| Weight | 0.2 kg | 0.44 lb |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
