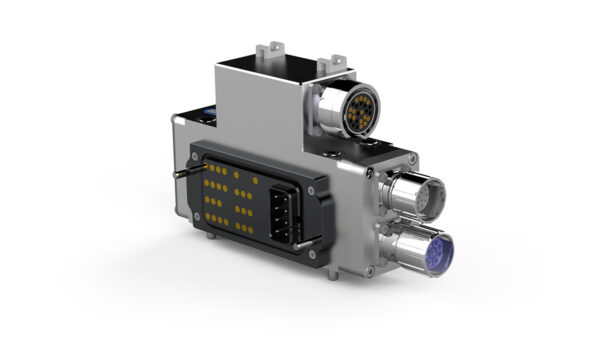

TA240-960 Multi-module with Profinet

Multi-module for signal, servo, resolver and Profinet bus. To be used with TA240 – TA960 tool attachments.

Easy to customize

Tool changers and tool attachments in the Modular series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.

Signal type

Bus, Servo, Signal

Connector 1

M12-D coded, 4 socket

C1 Type

Signal

C1 Rated current

2A

C1 Rated voltage

30V

C1 Signals available

13 + PE

Connector 2

M23 Signal, female thread, 17 socket

C2 Type

Resolver

C2 Rated current

2A

C2 Rated voltage

60V

C2 Signals available

6

Connector 3

M23 Power, female thread, 8 socket

C3 Type

Servo/Brake

C3 Rated current

15A (3x), 5A (4x)

C3 Rated voltage

300V (4x), 600V (3x)

C3 Signals available

8 (4 + 3, PE)

Connector 4

M12-D coded, 4 pin

C4 Type

Bus

C4 Rated current

1A

C4 Rated voltage

60V

Bus available to tool

4 (2 pair), 100 Mbit/s

IP Class

IP 54 (in docked condition)

Weight

1.1 kg | 2.43 lb

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Corresponding TC module

For Tool attachment
