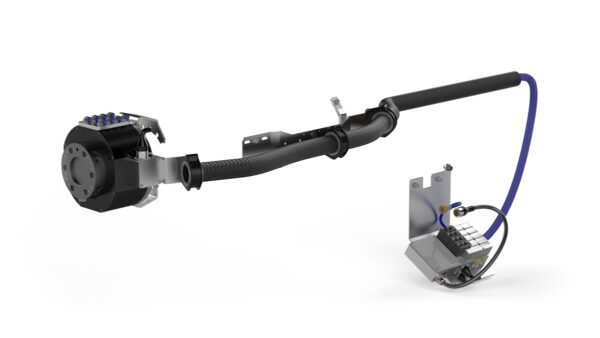

Tool system S250-8E for ABB IRB6700-235/2,65 & 205/2,80

This tool system is used when eight pneumatic channels and 17 electric signals are required. It consists of a swivel, adaptation kit, hose package, valve unit and cabling. The valve unit contains four directional bi-stable 5/2 valves and the hose package totally contains eight air hoses.

The complete package

With our tool systems you get it all: a complete combination of our products, adapted to your robot and your needs. An effective, flexible solution made to fit perfectly. The tool system is made easy to install, requires low maintenance and simplifies offline programming. Spend time on the application, and not on dressing the robot.

Robot brand

ABB

Mechanical interface

ISO 9409-1-125-6-M10

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Fz

± 2500 N | ± 550 lb

Mz

± 1250 Nm | ± 11000 lbf·in

Mx/My

± 2000 Nm | ± 17600 lbf·in

Air channels available to tool

8

Air connection, outlet

G 1/4" (8x)

Max air pressure

10 bar | 145 psi

Air quality

Oil-clean and waterless filtered air, with max 25µm particle content

Valve size

ISO15407-2 26 mm

Valve type

4 x Directional valves 5/2 Bistable

IP Class

IP 54

Signals available to tool

17

Connection robot side

Souriau UTO01823PH

Connection tool side

Souriau UT0W01419SH

Rated current

2 A

Robot model

IRB 6700-205/2.80, IRB 6700-235/2.65
