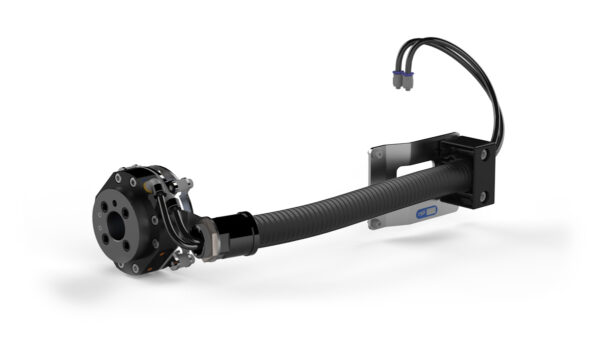

Tool system S20-2E for ABB IRB1300
This tool system is used when 2 pneumatic channels and 8 electric signals are required. It consists of a swivel S20-2E, adaptation kit, hose package, valve unit and cable. The valve unit has one monostable 5/2 valve and the hose package contains 2 air hoses.
The complete package
With our tool systems you get it all: a complete combination of our products, adapted to your robot and your needs. An effective, flexible solution made to fit perfectly. The tool system is made easy to install, requires low maintenance and simplifies offline programming. Spend time on the application, and not on dressing the robot.
| Robot brand | ABB |
|---|---|
| Mechanical interface | ISO 9409-1-40-4-M6 |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
| Fz | ± 200 N | ± 45 lb |
| Mz | ± 100 Nm | ± 900 lbf·in |
| Mx/My | ± 200 Nm | ± 1800 lbf·in |
| Air channels available to tool | 2 |
| Air connection, outlet | Ø6 mm hose (2x) |
| Max air pressure | 10 bar | 145 psi |
| Air quality | Oil-clean and waterless filtered air, with max 25µm particle content |
| Valve size | ISO15407-2 18 mm |
| Valve type | 1 x Directional valve 5/2 Monostable |
| IP Class | IP 54 |
| Signals available to tool | 8 |
| Connection robot side | M12-A coded, 8 pin |
| Connection tool side | 0.5m cable (0.25mm2), open end |
| Rated current | 0.5 A |
