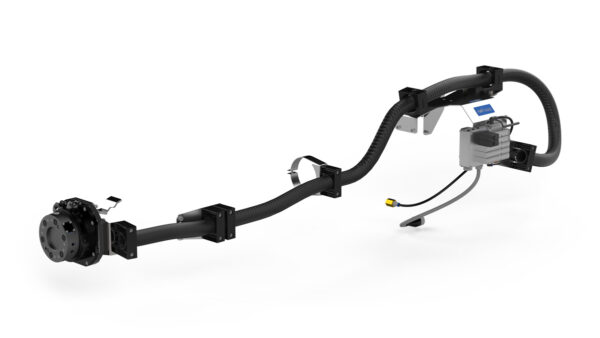

Tool system S100-4 for ABB IRB4600-40

This tool system is used when 4 pneumatic channels are required. It consists of a swivel, adaptation kit, hose package, valve unit and cabling. The valve unit contains two directional (mono-stable 5/2) valves. The hose package contains four air hoses in total.

Art.no: TS131-405 Categories: , ,
The complete package

With our tool systems you get it all: a complete combination of our products, adapted to your robot and your needs. An effective, flexible solution made to fit perfectly. The tool system is made easy to install, requires low maintenance and simplifies offline programming. Spend time on the application, and not on dressing the robot.

Robot brand

ABB

Robot model

IRB 4600-40/2.55

Mechanical interface

ISO 9409-1-100-6-M10

Working temperature

+10°C – +50°C | 50 °F – 120 °F

Fz

± 1000 N | ± 220 lb

Mz

± 1000 Nm | ± 8800 lbf·in

Mx/My

± 1000 Nm | ± 8800 lbf·in

Air channels available to tool

4

Air connection, outlet

G 1/8" (4x)

Max air pressure

10 bar | 145 psi

Air quality

Oil-clean and waterless filtered air, with max 25µm particle content

Valve size

ISO15407-2 18 mm

Valve type

2 x Directional valves 5/2 Monostable
