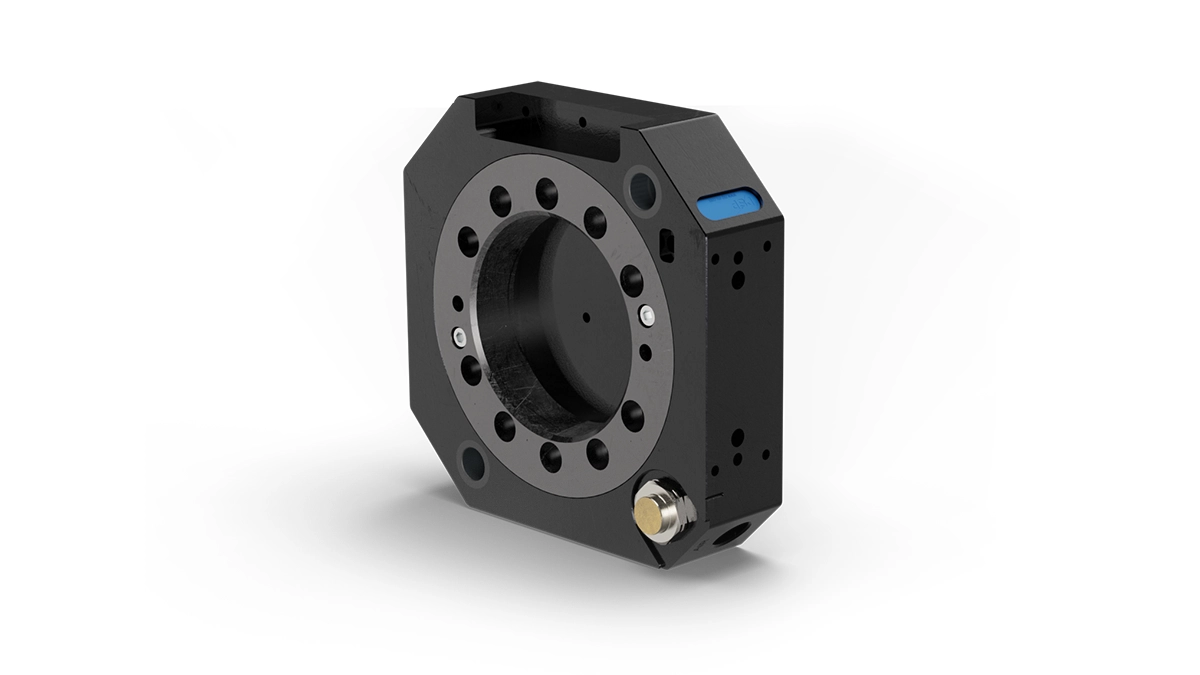

Tool Attachement TA240-1 ø125-6-M10

  • Modular design
  • External signals
  • Wide range of media modules – simple to customize
  • Designed to meet bodyshop application demands

Important! This unit includes our new generation air/water coupling. This is NOT compatible with the older version tool changer. If you need to retrofit, please contact support@robotsystemproducts.com

Art.No: P7331 Categories: , , , ,
Tool changing ability

The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool.

All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools.

Mechanical interface

ISO 9409-1-125-6-M10
Robot payload

240 kg | 530 lb
Fz

± 2400 N | ± 530 lb
Mz

± 1250 Nm | ± 11000 lbf·in
Mx/My

± 2000 Nm | ± 17600 lbf·in
Weight

5.2 kg | 11.4 lb
Height

50 mm | 1.97 in
Air channels available to tool

1, Additional channels can be added with external media module
Air connection, outlet

G 1/2"
Air flow per channel

2000 l/min | 70.6 CFM
Max air pressure

10 bar | 145 psi
Air quality

Oil-clean and waterless filtered air, with max 25µm particle content
IP Class

IP 54
Working temperature

+10°C – +50°C | 50 °F – 120 °F

Modules



Signal modules
Power modules
Air/Water modules

For Tool changer

Options
