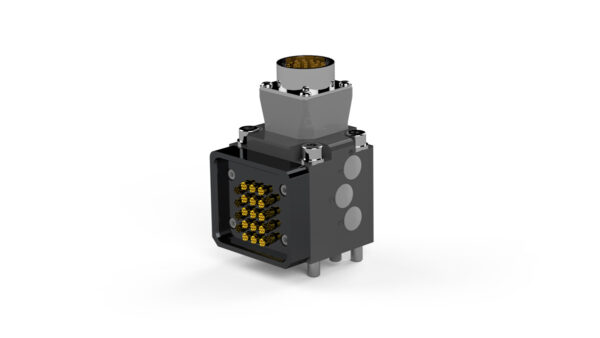

TC240-960 Signal module 23 x signals
Module for 23 x aditional signals. To be used with Moduflex tool changers TC240 – TC960.
Easy to customize
Tool changers and tool attachments in the Moduflex series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.
| Signal type | Power, Signal |
|---|---|
| Signals available to tool | 23 |
| Connector 1 | Souriau UT001823PH, 23 pin |
| Rated current | 2 A |
| Rated voltage | 60 V |
| IP Class | IP 54 (in docked condition) |
| Weight | 0.2 kg | 0.44 lb |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
