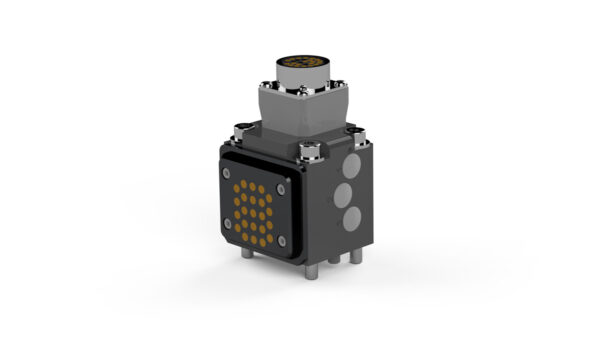

TA240-960 Signal module 19 x signals
Module for 19 x aditional signals. To be used with TA240 – TA960 tool attachments.
Easy to customize
Tool changers and tool attachments in the Moduflex series are easy to adapt according to the application needs. This is thanks to the modular system where you can equip your unit with extra channels for electricity, air etc. Each module for the tool changer has a corresponding module for the tool attachment. Thanks to this, you have the flexibility to equip your robot with exactly what it needs.
| Signal type | Power, Signal |
|---|---|
| Signals available to tool | 19 + PE |
| Connector 1 | Souriau UT0W61626SH, 26 socket |
| Rated current | 2 A |
| Rated voltage | 30 V |
| Weight | 0.2 kg | 0.44 lb |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
| IP Class | IP 54 (in docked condition) |
