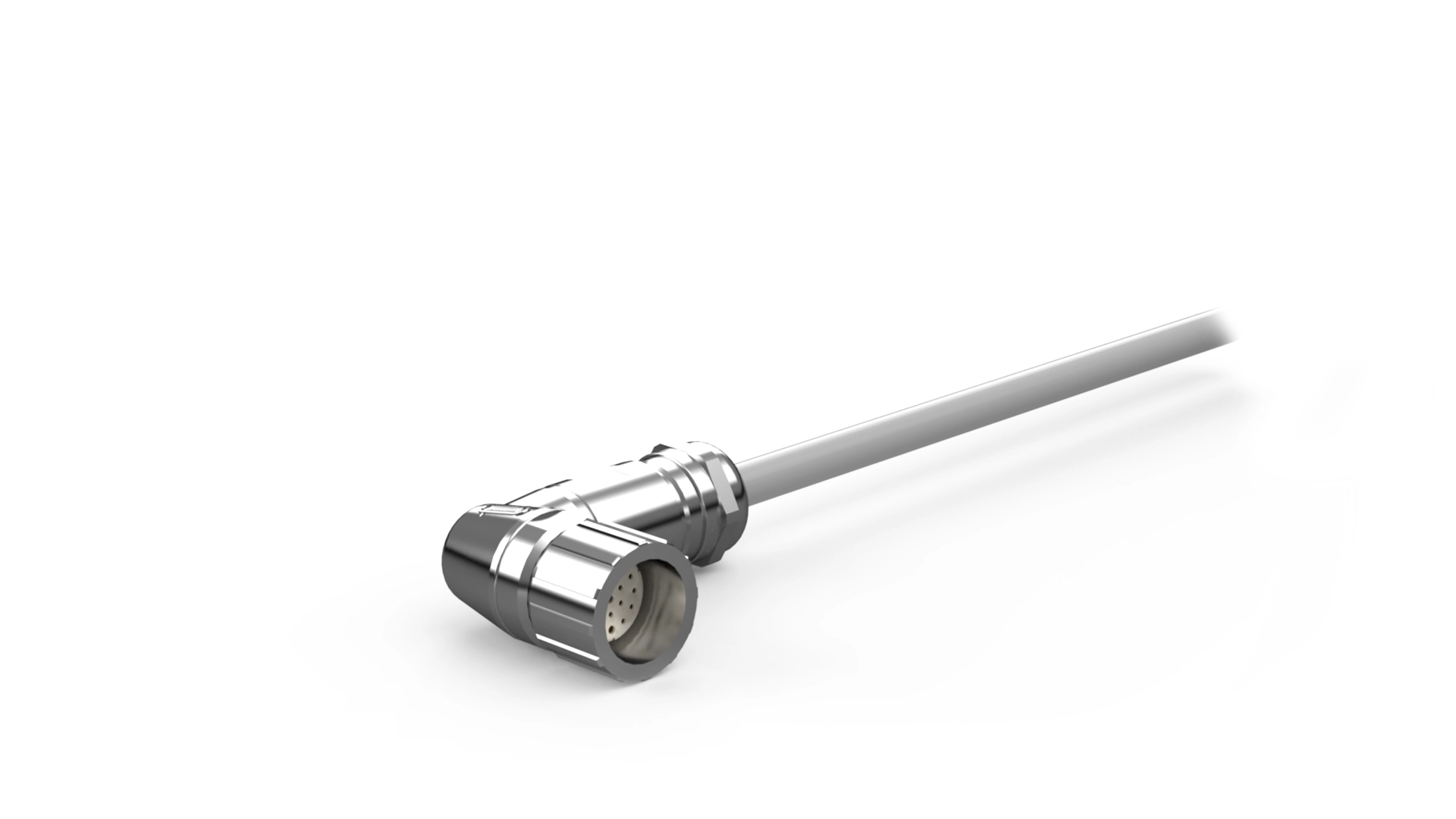

Signal cable M23 19S – Free end
We provide a variety of cables for different applications. In addition to the standard cables in our range, we can customize the cabling to your needs. Welcome to contact us with your inquiry.
| Connector 1 | I1246, I1266, I2074 |
|---|---|
| C1 Brand | Hummel |
| C1 Type | 7.003.919.102 |
| C1 No of poles | 19 |
| C1 Male/Female | Female |
| Cable | I0832 |
| Type of shield | Common shield |
| Conductor cross section | 0,34 mm² |
| External cable diameter | 9,4 mm |
| External cable material | PUR |
| Minimum bending radius | 71 mm |
| Installation type | High flexibility |
| Rated current at 40°C | 3,5 A |
| Rated voltage | 150 V |
