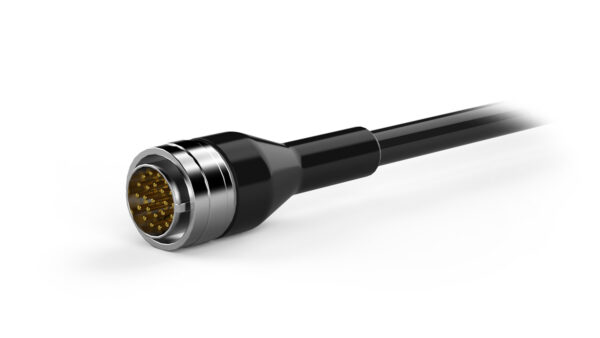

Signal cable 23P – Free end (2,0m)
We provide a variety of cables for different applications. In addition to the standard cables in our range, we can customize the cabling to your needs. Welcome to contact us with your inquiry.
| Length of cable | 2,0 m |
|---|---|
| Connector 1 | 3HAA2602-3 |
| C1 Brand | Souriau (Bayonet) |
| C1 Type | UT061823PH04 |
| C1 No of poles | 23 |
| C1 Male/Female | Male |
| Connector 2 | Free end |
| Cable | I0549 |
| Type of shield | Separate + common shield |
| Conductor cross section | AWG24 + 0,5 mm² |
| External cable diameter | 14,5 mm |
| External cable material | PUR |
| Installation type | Moderate flexibility |
| Rated current at 40°C | 2 A + 5 A |
| Rated voltage | 150 V |
