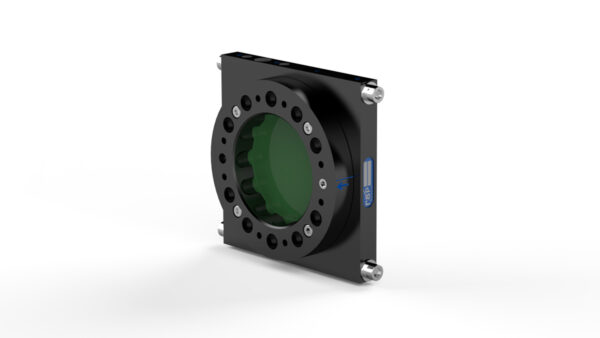

Tool attachment TA350-8 (for air only) with square attachment
For attachment of tool when using a tool changer TC350 or a swivel tool changer STC350
Tool changing ability
The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool.
All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools.
| Mechanical interface | ISO 9409-1-160-11-M12 |
|---|---|
| Robot payload | 350 kg | 800 lb |
| Fz | ± 3500 N | ± 800 lb |
| Mz | ± 3500 Nm | ± 31000 lbf·in |
| Mx/My | ± 3500 Nm | ± 31000 lbf·in |
| Air connection, inlet | G 1/4" (8x) |
| Weight | 5.7 kg | 12.57 lb |
| Height | 51.5 mm | 2.0 in |
