ISO9409-1 Adaption plates - Robot System Products

Adaption kit for TC350 to ø160-11-M10
P4506
Adaption kit with bolts for converting ISO9409-1 160-11-M12 to 160-11-M10. Suitable for TC350

Add To Quote

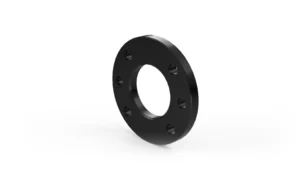

Adaption plate kit 50-4-6,5
P4612
Adaption plate kits are used to convert hole patterns from tool unit to robot interface. Some manufacturers supply robots with variations from the original ISO9409-1 standard. Always ensure you have the correct mechanical interface specified. Important: Always be carefull when mounting a smaller unit on a bigger robot due to higher acceleration, retardation and force.

Add To Quote
Adaption plate kit for 125-10-M10 to 160-10-M12
P4512
Adaption plate for converting ISO9409-1 125-10-M10 to 160-10-M12. Bolts are included.

Add To Quote
Adaption plate kit for 80-6-M8 to 100-6-M8
P4607
Adaption plate for converting ISO9409-1 80-6-M8 to 100-6-M8. Bolts are included.

Add To Quote

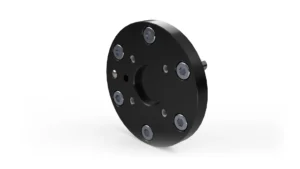

Adaption plate kit for 80-6-M8 to 50-4-M6
P4611
Adaption plate for converting ISO9409-1 80-6-M8 to 50-4-M6. Bolts are included.

Add To Quote
Adaption plate kit TC100 and TC120 for 80-6-M8
P0450
Adaption plate for converting ISO9409-1 100-11-M10 to 80-6-M8. Bolts are included. Suitable for TC100 and TC120.

Add To Quote
Adaption plate kit TC20 for 31,5-7-M5
P4205
Adaption plate for converting ISO9409-1 40-4-M6 to 31,5-7-M5. Bolts are included. Suitable for TC20.

Add To Quote
Adaption plate kit TC20 for 50-6-M6
P0105
Adaption plate for converting ISO9409-1 40-4-M6 to 50-6-M6. Bolts are included. Suitable for TC20.

Add To Quote
Adaption plate kit TC20 for 50-7-M6
P0162
Adaption plate for converting ISO9409-1 40-4-M6 to 50-7-M6. Bolts are included. Suitable for TC20.

Add To Quote
Adaption plate kit TC20 for 56-15-M4
P1118
Adaption plate for converting ISO9409-1 40-4-M6 to 56-15-M4. For Fanuc M20iA/20. Bolts are included. Suitable for TC20.

Add To Quote
Adaption plate kit TC20 for 63-4-M6 T=50
P0135
Adaption plate for converting ISO9409-1 40-4-M6 to 63-4-M6 with T Ø60. Bolts are included. Suitable for TC20.

Add To Quote
Adaption plate kit TC20ID for 56-15-M4
P0134
Adaption plate for converting ISO9409-1 40-4-M6 to 56-15-M4. Bolts are included. Suitable for TC20ID.

Add To Quote
Adaption plate kit TC20ID for 56-8-M4
P2208
Adaption plate for converting ISO9409-1 40-4-M6 to 56-8-M4. Bolts are included. Suitable for TC20ID.

Add To Quote
Adaption plate kit TC350 and TC500 for 125-10-M10
P0670
Adaption plate for converting ISO9409-1 160-11-M12 to 125-10-M10. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 125-11-M10 (For center tap Ø63, Motoman)
P6430
Adaption plate for converting ISO9409-1 160-11-M12 to 125-11-M10. For Motoman robots. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 125-11-M10 (For center tap Ø80)
P6538
Adaption plate for converting ISO9409-1 160-11-M12 to 125-11-M10. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 160-6-M10
P0693
Adaption kit with bolts for converting ISO9409-1 160-11-M12 to 160-6-M10. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 200-11-M12
P0664
Adaption plate for converting ISO9409-1 160-11-M12 to 200-11-M12. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 200-12-M16
P0657
Adaption plate for converting ISO9409-1 160-11-M12 to 200-12-M16. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 200-6-M12
P1610
Adaption plate for converting ISO9409-1 160-11-M12 to 200-6-M12. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC350 and TC500 for 265-12-M16
P4503
Adaption plate for converting ISO9409-1 160-11-M12 to 265-12-M16. Bolts are included. Suitable for TC350 and TC500.

Add To Quote
Adaption plate kit TC5 for 50-7-M6
P4601
Adaption plate for converting ISO9409-1 31,5-4-M5 to 50-7-M6. Bolts are included. Suitable for TC5.

Add To Quote
Adaption plate kit TC60 for 50-4-M6 T=31,5
P4301
Adaption plate for converting ISO9409-1 80-6-M8 to 50-4-M6 with T Ø31,5 . Bolts are included. Suitable for TC60.

Add To Quote
Adaption plate kit TC720 and TC1000 for 200-10-M12
P4502
Adaption plate for converting ISO9409-1 200-12-M16 to 200-10-M12. Bolts are included. Suitable for TC720 and TC1000.

Add To Quote
Adaption plate kit TC720 and TC1000 for 250-10-M12
P0759
Adaption plate for converting ISO9409-1 200-12-M16 to 250-10-M12. Bolts are included. Suitable for TC720, TC960 and TC1000.

Add To Quote
Adaption plate kit TC720 and TC1000 for 315-16-M16
P6915
Adaption plate for converting ISO9409-1 200-12-M16 to 315-16-M16. Bolts are included. Suitable for TC720 and TC1000.

Add To Quote
