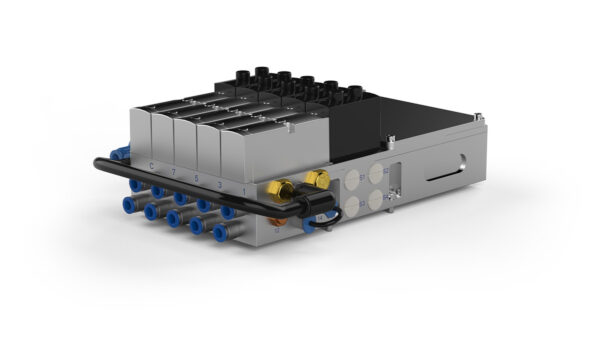

Large valve unit with 5x valves
- Large valve unit with five valves
- Built in connection box for I/O signals
- Standard ISO01 26mm IE interface
Replaces P0037A
The RSP valve unit is connected to the robot signal/air interface. The signals from the robot are connected to the terminal inside the valve unit. Connections for up to five valves with two solenoids each are prewired. On the valve unit a contact is mounted for transferring signals to/from the tool mounted at the wrist of the robot. As standard Festo-valves are used. Other brands can be fitted on request.
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
|---|---|
| Weight | 4.0 kg | 8.82 lb |
| Air connection, inlet | Ø10 mm hose (1x) |
| Air connection, outlet | Ø8 mm hose (10x) |
| Air channels available to tool | 10 |
| Max air pressure | 10 bar | 145 psi |
| Air quality | Oil-clean and waterless filtered air, with max 25µm particle content |
| Valve size | ISO15407-2 26 mm |
| Valve type | 5 x Directional valves 5/2 Bistable |
| IP Class | IP 54 |
| Signals total | max 39 |
| Signals dedicated tool side | 3 (GND, 0 V and 24 V) |
| Signals available to tool | 21 |
| Voltage, valves | 24 V |
| Connection input | 2x M25x1.5 for cable gland |
| Connection output | Souriau 23p Female |
| Rated current | 5 A |
